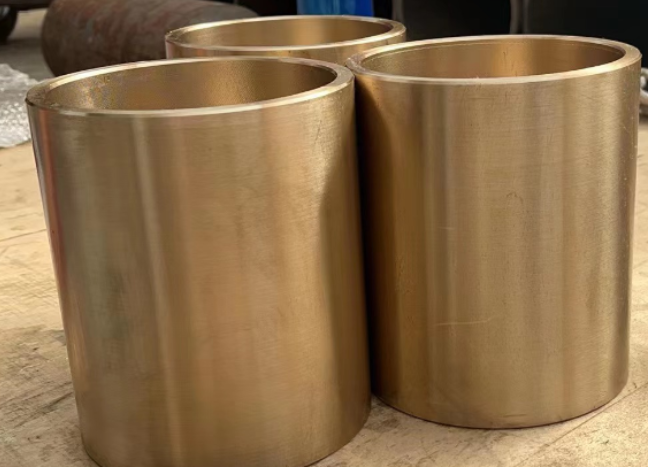

Brass tube

  • Brass tube

Brass tube

Description:

Material: C23000/C26000/C27000/C28000/C272000/C67800/C44300/C86500

Size: 6-219mm

Thickness : 0.6-30mm

Length: 1-6m

parameters

Standard

GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,

ASTMB395,ASTM B587,etc

Material

Brass:C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000,

C27200,C27400,C2800,H59,H62,H70,H65,H80,H90,CuZn30,CuZn37,CuZn35,

CuZn40,etc

Leaded brass:C31400,C31600,C32000,C33000,C33200,C33500,C34000,C34200,

C34500,C35000,C35300,C35600,C36000,C36500,C37000,C37700,C38000,

C38500,etc

Tin brass:C40500,C40800,C41100,C42200,C44400,C48200,C46400,C46200,etc

Aluminium bronze:C60600,C62300,C62400,C63000,C63200,C64200,etc

Application

Brass pipe have strong, corrosion resistant properties, and become a modern

contractor in all ofcommodity house pipes,heating, cooling water piping

installation of choice

introduction

Applicatian:
Engine cooler, power plant  condenser, marine heat  exchanger, compressor cooler, petrochemical refinery cooler,
motor cooler, seawater
 desalination evaporator, air conditioning cooling system and other fields.

Good characteristics:

Thermal conductivity, good  conductivity, wear  resistance, plasticity, good cold bending property,
easy to welding and machining, the seawafer corrosion
 resistance is strong.
Grade and control table:
Material GB ASTM BS DIN Eu JIS
Copper Nickel BFelO-1-1 C70600 CN 102 CuNilOFelMn CuNilOFelMn
C70610 CN 102 CuNilOFelMn CuNilOFelMn
BFe3O-I-I C71500   CuNi30Fe   C7150
  CN107 CuNi30Mnl Fe CuNi30MnlFe
C71640 CN 106 CuNi30 CuNi30
Fe2Mn2 Fe2Mn2
aluminum  brass HA177-2 C68700 CZ110 CuZn20Al2 CuZn20Al2As C6870
Admiraltybrass HSn70-I C41100
C44300 CZ111 CuZn28Snl CuZn28Snl As C4430
C44500
Copper T2 Cl 1000 C102 E-Cu58 Cu-ETP Cl 100
Tpl Cl 2000   SW-Cu Cu-DLP C1201
Tp2 Cl 2200 C106   Cu-DHP Cl 220


Supply material according to customer is designatal standard Such as GB GB/T8890,American Standard- 111,American Standard ASTMB111,Britain standard BS2781, European standard EN12451,DIN 1785,JIS and other special standard and so on.
